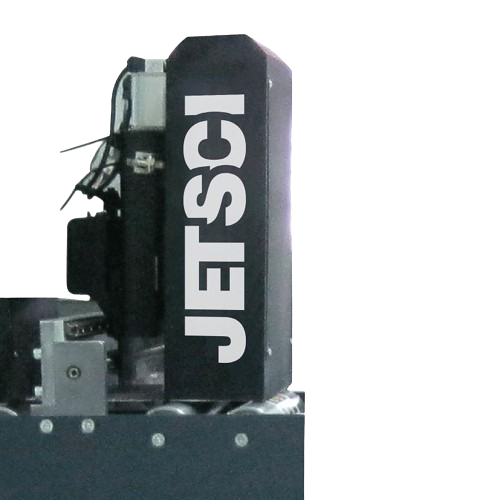

Tracesci JETSCI® Y Series
Ideal solution for VDP
Revolutionary Technology Exceeding Expectations!! Rising demand for digitalization and short run jobs have changed customer requirements. Customers expect high speed, quality, reliability, flexibility from a cost effective solution. Integrated using the world’s fastest drop on demand (DOD) Kyocera Kj4 Inkjet Printhead, Monotech® Systems’ JETSCI® Y series delivers the premium solution for printing variable data at high speeds with very high quality. It can be adapted to any existing setup and upgrade conventional printing web press, sheetfed, converting lines with digital (imprinting) production systems. Due to its modular design, flexibility and cost effective, wide range of applications can be targeted with these systems. Fully integrated inkjet system and customized stand-alone printing solution can also be designed and offered for bespoke applications.
JETSCI printing system utilises high quality UV curable and Aqueous (Water Based) inks to achieve high consistency and reliability in the prints. UV inks comprise of chemicals that do not produce any VOC (volatile organic compounds) thus are much safer than solvent inks. Wide range of inks offered for different applications; various substrates, speciality and security applications as well as low migration inks for food packaging.
FEATURES
Printhead: Kyocera
Native Resolution: 600 dpi
Speed: Up to 150 m/min
Print Width: Multiple of 108 mm
Ink Type: Water Based/UV Curable
Drop Sizes: 3-14pl variable drop volume or fixed binary mode
KEY APPLICATIONS

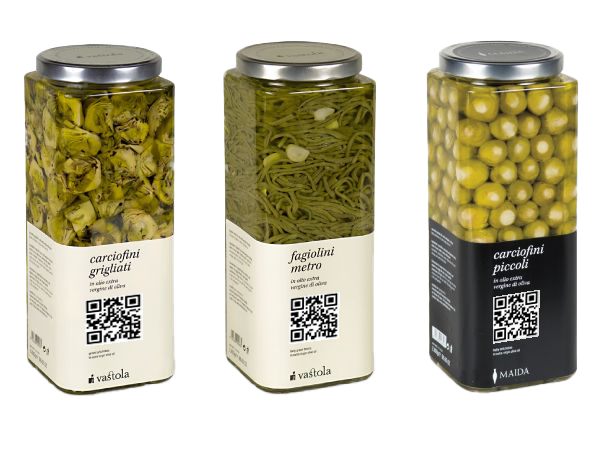

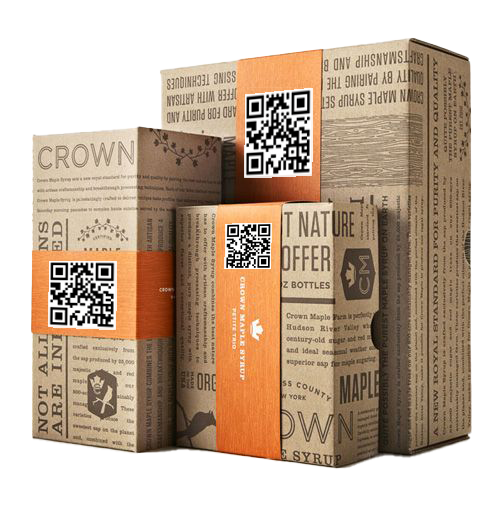

Barcodes & 2-D/QR codes
Variable text
Logical and sequential numbers
Logos and variable images
OMR and litho codes
Custom fonts & symbols
Micro text and security features
Full or part page variable data
Specifications
TECHNICAL SPECIFICATIONS
| JETSCI® YUV | JETSCI® YAQ | |
| Printhead | Kyocera KJ4A (Piezo DoD) | Kyocera KJ4B (Piezo DoD) |
| Print Width | Multiple of 108 mm | Multiple of 108 mm |
| Print Resolution | 600 dpi (Native) | |
| Speed ( Print Resolution Dependent) | Up to 150 m/min | Up to 200 m/min |
| Drop Volume | 3pL, 7pL, 11pL, 14pL (Binary or Gray Scale) | 5pL, 7pL, 12pL, 18pL* (Binary or Gray Scale) |
| Ink Type | UV Curable | Water Based ( Dye/ Pigment/ Hybrid) |
| Ink System | Closed loop with Degas (Non Recirculating) Recirculation in case of heavy pigmented inks like white | |
| Ink Tanks | 5 Litres | |
| Standard Color | Monochrome | Spot | Security | |
| Ink Options | Spot Color, Invisible, White, Security inks | Spot COlor, White, Invisible, Security inks |
| Recommended Substrates | Paper, Coated, Glossy, Films, Plastics, Polyester, Aluminium Foils, Labels, PVC, Carton, PET, Tyvek etc. | Paper, Coated, Non Coated, Glossy, Board, Cartoon, Paper labels etc. |
| VDP Software Input Format | BMP, JPEG, PNG, TIFF, CSV, TXT, XLS, PDF Printing (Optional), Data base file | |
| Controller Configuration | Industrial PC with 64 – Bit Windows 11,32 GB RAM, 250 GB SSD (Configurable) | |
| Optimum Temperature & Humidity Range | 20-26°C, Humidity 40-60 %, Non Condensing | |
| Air Supply Requirement | Compressed Air, 6-8 Bar, Moisture & Oil Free | |
| Conduits length | Generally supplied with 5m Length, custom size available | |
| Electrical Requirements | Standard 220-240 V, 50 Hz, 10 A Only For Inkjet Print Module (Configuration dependent) | |
