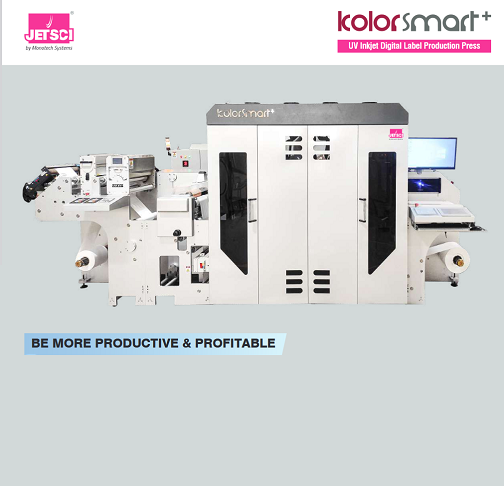

Tracesci JETSCI® KolorSmart+
The JETSCI® KolorSmart+ Digital Label Press has comprehensive features to meet the diverse needs of various industries. Combining speed, precision, versatility, and customization, this press has gained recognition for its ability to deliver high-quality labels efficiently.
Versatility
The press is having an additional pre-inkjet flexo station with standard UV curing to apply primers, under white or spot colours.
Pre-Inkjet flexo station can be used for priming, coating, or single-color printing along with up to 6-colors (W+CMYK+ Special color).
Excellent Quality
As part of the new generation of advanced Inkjet Label Printing Presses, the UV inkjet unit features 4-step gray droplet size printheads and specially formulated inks to deliver outstanding image quality and sharp, detailed text. The press utilizes cutting-edge Kyocera inkjet printhead technology to ensure uncompromised print quality.
At the heart of the JETSCI® KolorSmart+ is a highly advanced printing system that sets a new standard among Inkjet Label Printing Presses. With high-resolution grayscale printheads and a refined color management system, it consistently produces exceptional print results.
Robust and Productive
The KolorSmart+ Digital Label Press stands out for its consistent high-speed performance. Designed to handle large volumes of label production efficiently, this Digital Label Press is ideal for businesses seeking productivity without sacrificing print quality.
Ease of Use
Its user-friendly interface simplifies the printing process, reducing the learning curve for operators. Moreover, its automation capabilities streamline operations, minimizing manual intervention and potential errors, thereby enhancing overall efficiency.
Technical Specifications
| Print head | Piezo DoD, Gray Scale |
| Web Width | Up to 350 mm |
| Speed | Up to 50 m/min |
| Drop Volume | 3-14 pL (4 Gray level) |
| Substrate | 40-200 um (label paper supported, other materials – perform test) |
| Air Supply Requirement | Compressed Air, 6-8 Bar, Moisture & Oil Free |
| Ink Systems | Closed Loop with Degas |
| Ink Tanks | 5 Litres(To be Specified) |
| Color | CMYK + White + Special Color |
| Electrical Requirements | 3 phase 410-440 V, 50-60 Hz, 32 A |
| Ink type | UV LED Curable, Hi-opacity White |
| Dimension | 4550 x 2175 x 2050 mm & Weight – 1800 Kg |
| DIGITAL PRINT ENGINE | |
| Print Width | Up to 324 mm |
| Resolution | 600 x 600 dpi native, @ 4 level Gray scale, 600×1200 dpi Configurable |
| File Format | PDF, PDF/VT, TIFF, JPEG, BMP & other database files |
| Workflow | Advanced Color, Management and Solution |
| Ink Curing | Inter Colour UV LED Pinning, Full Curing by UV LED / Arc Lamp, Chilled Drum Rollers |
| WEB CONTROL SYSTEM (Fully Servo Driven) | |
| Unwinder Diameter: | 700 mm, core 76 mm |
| Rewinder Diameter: | 700 mm, core 76 mm |
| Other Accessories: | Pre-Inkjet Flexo Station, Web Cleaner with Antistatic Bar, Corona Treater |
| Flexo unit | Coating, Printing, Primer with UV Curing |
| ENVIRONMENTAL DATA | |
| Optimal Temperature Range: | 20-24°C (68-72-degree F) |
| Ink Storage | 18-22°C (68-77-degree F) |
| Optimum Humidity Range | Humidity 40-60%, Non Condensing |
